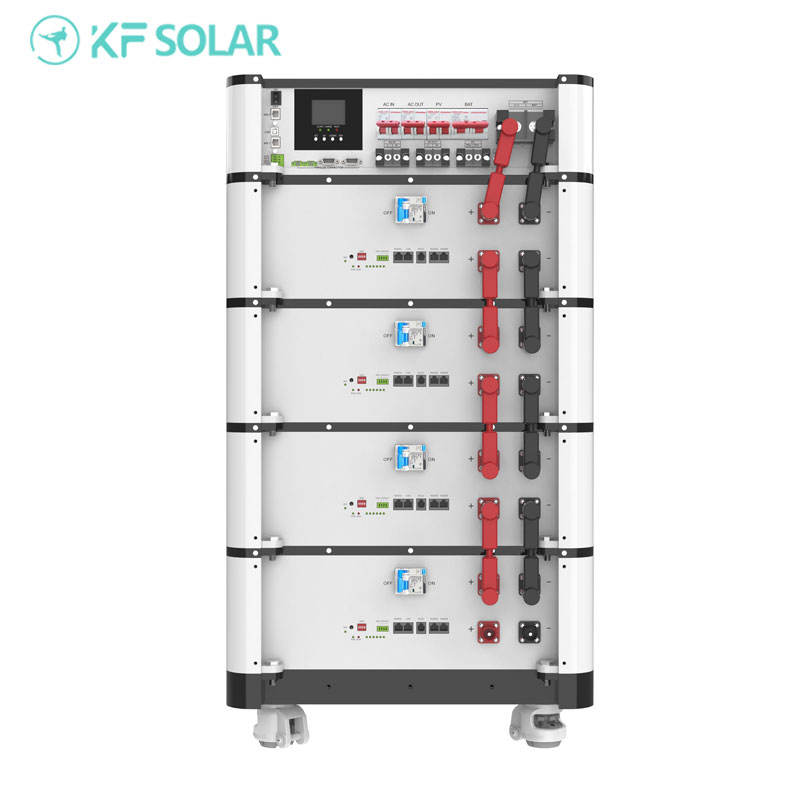

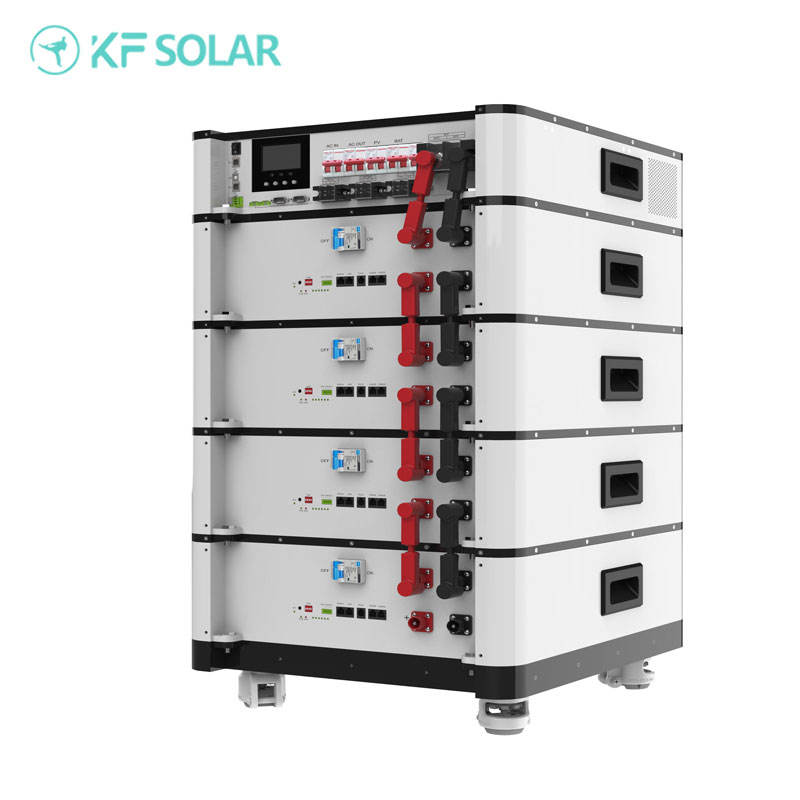

KF Solar 10kW Hybrid Inverter High Voltage LFP Battery Energy Storage System
Product Overview
The KF Solar 10kW Hybrid Inverter Energy Storage System is an all-in-one high-voltage lithium iron phosphate (LFP) battery solution designed for residential, commercial, and industrial energy storage applications. Featuring integrated inverter technology, scalable battery capacity, and multiple communication interfaces, it provides reliable backup power and efficient solar energy management for off-grid and energy independence applications.
Key Features
- Integrated all-in-one energy storage system
- High-performance Lithium Iron Phosphate (LiFePO4) battery technology
- 5kW–10kW output power range
- Multiple capacity options from 15.36kWh to 30.72kWh
- Off-grid energy storage solution
- Stackable, wall-mounted, and rack-mounted installation options
- Advanced Battery Management System (BMS)
- CAN, RS232, and RS485 communication support
- Low operating noise level
- OEM and ODM customization available
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | High Voltage LFP Battery Energy Storage System |
| Brand | KF Solar |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| System Type | All-in-One |
| Output Power Range | 5kW – 10kW |
| System Voltage | 46.7V – 57V |
| Rated Voltage | 46.7V – 57V |
| Battery Capacity Options | 15.36kWh / 20.48kWh / 25.60kWh / 30.72kWh |
| Grid Connection | Off-Grid |
| Installation Type | Wall-Mounted, Stackable, Rack-Mounted |
| Communication Ports | CAN, RS232, RS485 |
| Protection Class | IP20 |
| Operating Temperature | -15°C to 55°C |
| Noise Level | <60dB |
| Dimensions (L×W×H) | 600 × 185 × 1600 mm |
| Weight | 125 kg |
| Certification | CE, RoHS, UN38.3, MSDS |
| Color | Customizable |
| OEM/ODM Service | Available |
Applications
- Residential Solar Energy Storage
- Commercial Energy Storage Systems
- Industrial Backup Power Solutions
- Off-Grid Solar Installations
- Energy Independence Projects
- Emergency Power Backup Systems
Advantages
- Long-life LiFePO4 battery chemistry
- Integrated inverter and battery design
- Flexible installation configurations
- Expandable capacity options
- Intelligent energy management
- Reliable backup power during outages
- Safe and environmentally friendly energy storage
- Suitable for both residential and commercial projects
Capacity Options
| Capacity | Recommended Application |
|---|---|
| 15.36kWh | Small Home Energy Storage |
| 20.48kWh | Medium Residential System |
| 25.60kWh | Large Residential / Small Commercial |
| 30.72kWh | Commercial & Industrial Backup |
Battery Technology: Lithium Iron Phosphate (LiFePO4)
Output Power: 5kW–10kW
Capacity Range: 15.36kWh–30.72kWh
Communication: CAN / RS232 / RS485
Protection Rating: IP20
Application: Residential, Commercial & Industrial Energy Storage Systems
